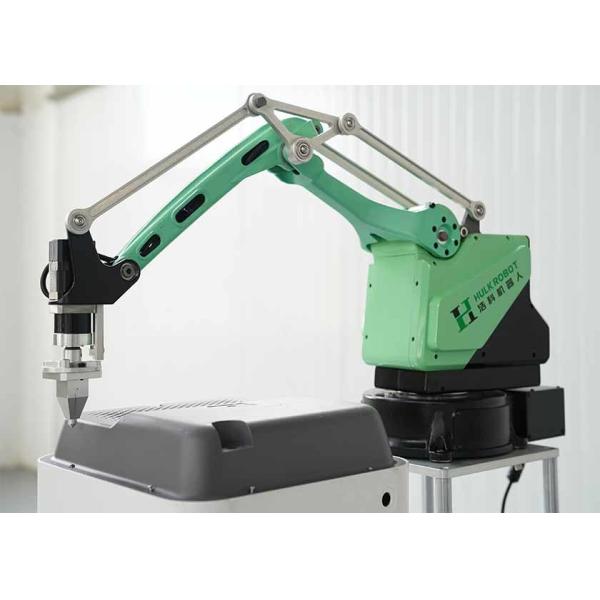

Smart 4-Axis Desktop Rotating Mechanical Robot Arm With Step Motor
Details
This Smart 4-Axis Desktop Rotating Mechanical Robot Arm With Step Motor offer the highest speed and repeatability in their class .In addition,these small industrial robots have a compact, space-saving design, they have a a maximum payload of 1 kg. And it also can be easily integrated with camera, AI and cloud service to realize more applications. such as vision guided pick and place, flexible feeding system, handle complex parts. It has 5 inputs/outputs,which can connect PLC to access the signal of your production line, so that the robot and the production line can work together.if not enough,It can be extended by 16 external inputs/outputs modules. Because of its small size, no independent control cabinet and cooperation ability, it is an ideal product for the automation solution upgrade of production line.
Features
Fully assembled
Arm reach:540mm
small and exquisite in body and structure
set up and used straight off of your desktop
4/5 DOF structural layout,more flexiable
1 kg payload
easy to understand concise, clear and self explanatory syntax.
Free Android control software
Programming language: C++, C#
Repeat positioning accuracy 0.05mm,more accurate.
Easy programming,no complicated languages.
Application
Rapid handling of small parts and products
Feeding
Assembling Picking with camera
STEM Education
Load & Unload
School laboratory
lock screw
Nuts handing
Laptop case grab
Auto parts
3C electronics
Mechanical Machining
Visual inspection
Biological medicine
Unmanned retail
Food processing
Vocational education
Lens processing
Technical parameter
| Model | HK5404 |
| Maximum working radius | 540mm |
| Number of axis | 4 |
| Installation | Earth / desktop |
| N.W/ G.W | 13kg/20kg |
| Repeat Positioning Accuracy | ±0.05mm |
| Maximum Load | 1kg |
| Power Consume | 0.4KVA |
| Power supply | Input:Single phase 110V-240V 50Hz Output:DC 24V(400W) |
| Voltage rating | 220V 50 Hz |
| External communication | WIFI/Ethernet |
| Application | Industry, Academic, Teaching, Vocational education |
| Safety standard | ISO 9001-2015 |
| Control software | Hulkbot Studio |
| Drive System | Steper motor |
| Working condition | -10°C~60°C |
| I/O | Input 5/Output 5,can be expanded by 16 |
Working rang of each axis
| Axis | Working Range | Max Speed |
| Axis 1 | ±160° | 360°/s |
| Axis 2 | -42°~85° | 360°/s |
| Axis 3 | -20°~100° | 360°/s |
| Axis 4 | ±165° | 500°/s |
Shipping List
| Name | Quantity |
| Robot arm | 1 |
| Power adapter | 1 |
| Emergency stop | 1 |
| Power cable | 1 |
Detailed images
